Webinar Tutorial Video







The NWS FLYERS (FLYing Education Resources and Safety) team hosted a tutorial and demonstration of the Aviation Weather Center's new website while experimental: Beta.AviationWeather.gov September 8, 2022.






Welcome to the Aviation Weather Center

Overview

Tutorial

About

Glossary

FAQ



Overview







Watch a webinar explaining how to navigate the new website





AviationWeather.gov has a new look! Some of the goals of the new website design were to provide a consistent page layout throughout, reduce duplication and limit the number of pages, and achieve mobile responsiveness. The website is organized by utilizing the main page to branch to an interactive map called the Graphical Forecasts for Aviation (GFA), various impacts dashboards, a data and imagery page, and a handful of other pages that provide weather information for the world airspace system. Check out the webinar tutorial video to the left to get a full overview of the website.

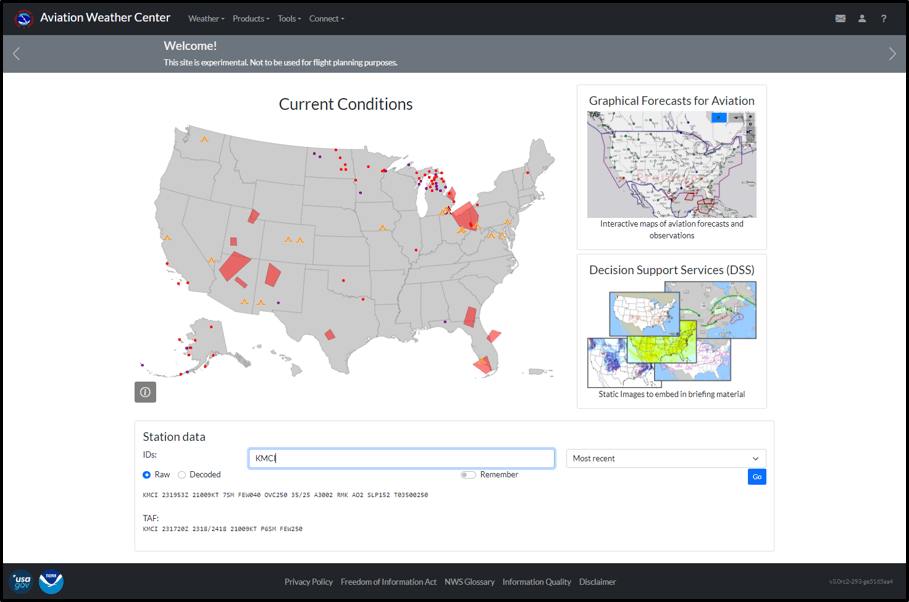

Main Page

The main page utilizes the template visible on all pages of AviationWeather.gov. A header at the top guides the user through the website, and a footer at the bottom provides links to USA.gov and NOAA pages. There is a "Top News" bar along the top to provide details on any new updates to the website or important information for the user. The large static image in the center of the screen shows current aviation weather conditions utilizing AWC products. The smaller images provide links to additional data or tools within AviationWeather.gov. Get the latest station data by entering an airport identifier at the bottom.






Top

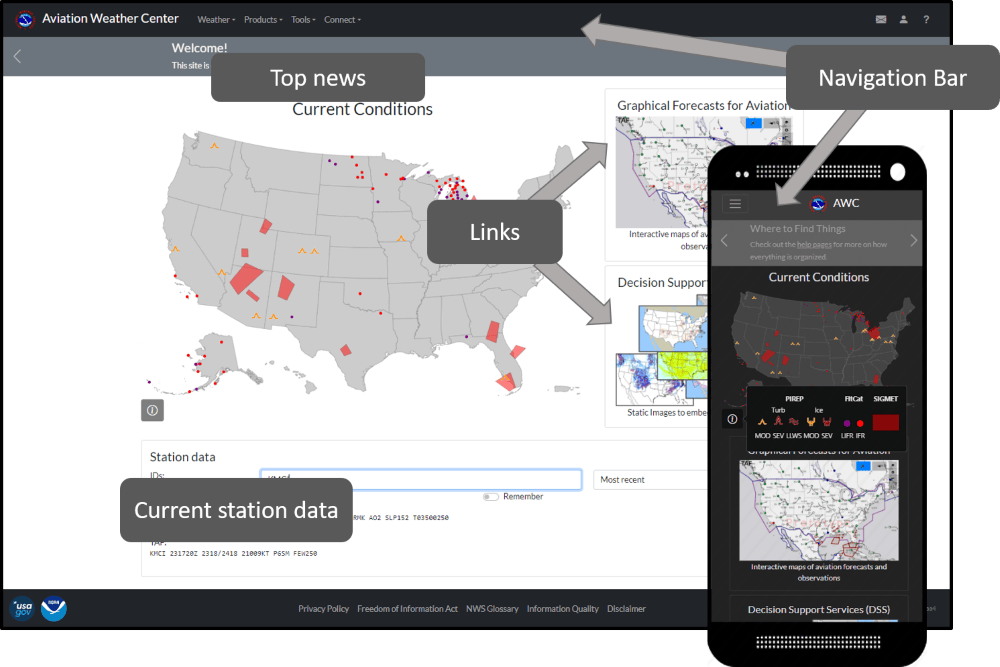

Main Page Tutorial


Annotations of the major features found on the front page — click a label for more information:



Navigation barNavigationCurrent
conditionsCurrent
conditionsFooterFooterTop newsNewsLinks to
additional
dataLinksStation dataData



Navigation Bar

The Navigation Bar along the top is consistent throughout each page on AviationWeather.gov and can help the user navigate through different parts of the webpage. Dropdowns on the left side of the navigation bar will load a new location on the site, and the icons on the left will provide additional support or pop-ups to assist in navigation or support questions. The Aviation Weather Center or AWC on mobile devices will always link back to the main page.


Weather








The weather dropdown menu will direct the user to the Graphical Forecasts for Aviation (GFA) interactive map. Once viewing the GFA, the user can select other parameters and adjust settings on the map. For more information on the GFA, please view the GFA Help page.

These pages are designed to cover the fundamentals of a general aviation weather briefing, integrating gridded forecasts, SIGMETs, (G-)AIRMETs, and observations.

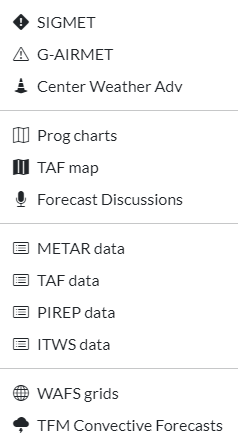

Products








The products dropdown menu provides access to specific products.

SIGMET: View SIGMETs alone within GFA.

G-AIRMET: View G-AIRMETs alone within GFA.

Center Weather Adv: View Center Weather Advisories alone within GFA.

Prog Charts: View the Weather Prediction Center produced fronts and NDFD precipitation grids with GFA.

TAF map: View TAFs alone within GFA.

Forecast Discussions: View the aviation data from forecast discussions produced at Weather Forecast Offices.

METAR/TAF/PIREP data: Print out unformatted data for a certain location.

Wind/temp data: Legacy FB wind and temperature text products

ITWS data: View airport winds through the Integrated Terminal Weather System.

WAFS grids: Redirect to the NWS display of World Area Forecast System (WAFS) grids. The WAFS Internet File System (WIFS) can be accessed here. NOTE: An account is required to access WIFS data.

TFM Convective Forecasts: Traffic Flow Management (TFM) Convective Forecast (TCF), Extended TCF (eTCF), and Extended Convective Forecast Product (ECFP). More information on the TFM forecasts can be found by clicking here.




Tools








The tools dropdown menu leads to links within AviationWeather.gov that provide additional data and aviation decision support.

Terminal Weather dashboard: Forecasted time series display of weather conditions and color coded impacts.

Winter Weather Dashboard: Dashboard display of view potential winter weather impacts to core airports.

Traffic Flow Management Portal: Access quick links to additional aviation weather information.

Advanced map: GFA map with continuous timeline and flexible layer selection

Decision support imagery: Imagery designed for targeted CWSU briefings.

Fax charts: View and download static wind and temperature aloft fax charts, and Canadian Graphical Area Forecasts.

Archive View: Load the page exactly as it was up to two weeks in the past.

Data API: Application programming interface to access raw and decoded aviation data.

Status: View the status of data on AvationWeather.gov to confirm any outages or late data.

Submit a PIREP: Open a pop-up window to fill out a quick and easy form for PIREP submission. To register for an account click on the envelope at the top right corner and fill out the contact us form with the subject PIREP Access. Once you have gained permission, fill out the form under Submit a PIREP.
NOTE: You must be signed in to submit PIREPs.




Connect








The connect dropdown menu provides links to learn more about AWC through informational dialogs and social media.

About AWC: Learn more about AWC, NOAA, and our mission.

Twitter: Find us on Twitter.

Facebook: Find us on Facebook.

YouTube: Watch tutorial videos and research videos on our YouTube page.

Aviation Weather Testbed: Redirect to our testbed page to learn about current research and experiments.




Icons








The envelope icon on the right will open a pop-up to provide us with feedback or ask a question. Fill out the form and select SUBMIT at the bottom, our developers will get back to you as soon as possible.

The person icon will open a pop-up to sign-in to your account; only a few pages require an account. Use the dark mode toggle to switch between dark and light mode.

And lastly, the question mark will redirect you to the respective help page for the page you are viewing. For more help pages, click the FAQ tab on the help page you are on.





Top News

The welcome bar and top news bar will scroll through important information and updates to changes on the website. All new updates and changes will be listed here.



Current Conditions

The large image on the screen provides current AWC produced SIGMETs, submitted PIREPs, and IFR flight category dots. To view the observations more closely, add more information zoom and pan click on the image and utilize the GFA interactive map.



Links to additional data

The images to the right of the current conditions on a desktop, or below the current conditions on a mobile device provide links to AWC flagship products. Click on the Graphical Forecasts for Aviation card to link directly to the GFA. You can modify the view or select alternative weather products from within the interactive view. Click the Decision Support Service (DSS) card to view our static imagery.

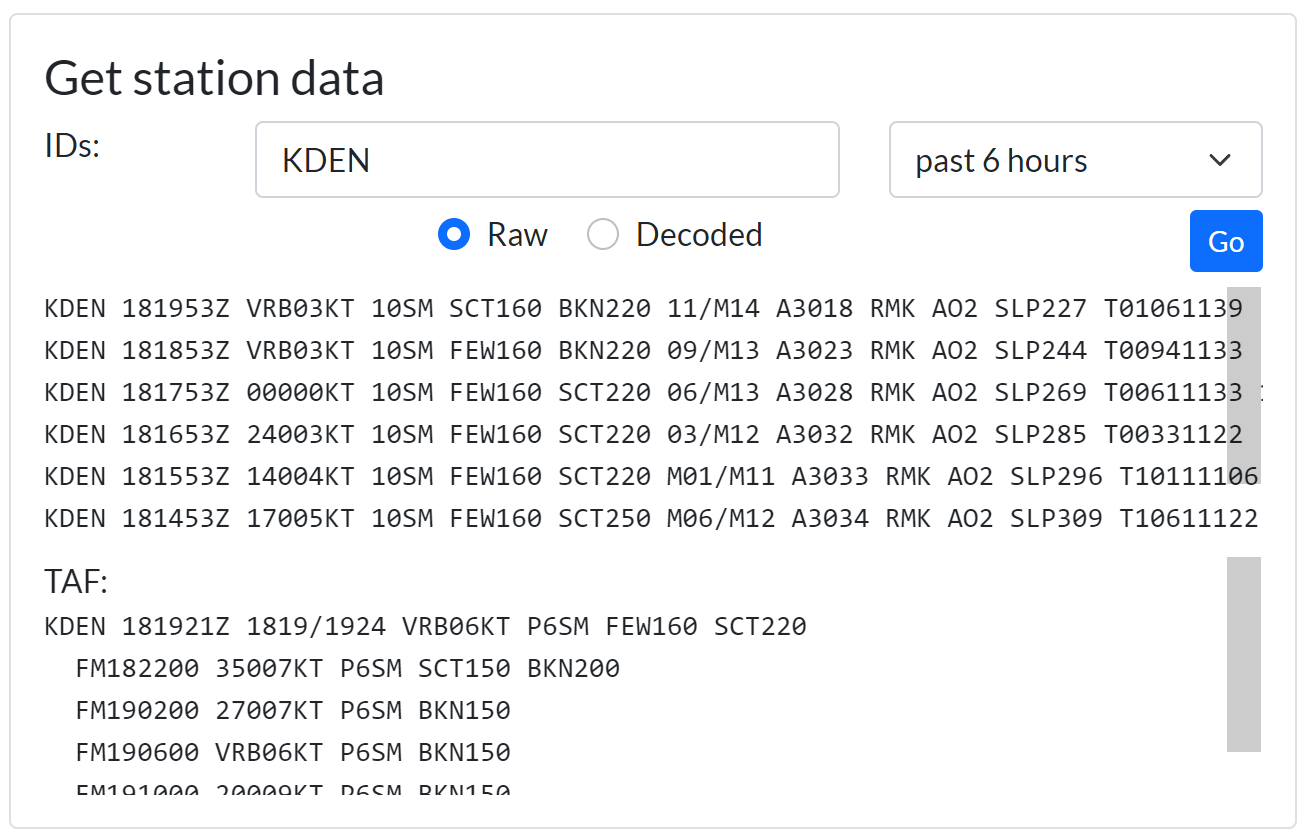

Station Data






Enter a four character station identifier into the ID box and select the data to view. Once the METAR selections are set, click Go. The METAR data and TAF for the airport identified will be displayed in the box.

Expanded METAR and TAF data pages are also available.




Footer

The footer, found on all pages except the full page interactive maps, provides links to additional Department of Commerce, National Weather Service, and USA.gov information.




A

Area Forecast (FA) — Forecast of Visual Flight Rules (VFR) clouds and weather conditions over an area as large as the size of several states, used in conjunction with AIRMETs. FAs over CONUS were discontinued and replaced with the GFA.

Area Forecast Discussion (AFD) — Narrative forecast informational discussion issued by local NWS Weather Forecast Offices.

AIREP — Reports of actual weather conditions encountered by aircraft, typically automated. See also PIREP.

AIRMET (Airmen's Meteorological Information) — Weather advisories of weather that may be hazardous to aircraft, but are less severe than SIGMETs, that depict conditions over a six hour period with a twelve hour outlook. AIRMETs over CONUS have been replaced by G-AIRMETs.

Alaska Aviation Weather Unit (AAWU) — MWO responsible for Alaskan airspace. Website.

Altimeter setting — Station pressure (the barometric pressure at the location the reading is taken) which has been corrected for the height of the station above sea level.

Application Programming Interface (API) — Machine-to-machine data access interface.

Automated Surface Observing System (ASOS) — Weather reporting system which provides surface observations via digitized voice broadcasts and printed reports. Maintained by NWS, FAA, and the Department of Defense.

Automated Weather Observing System (AWOS) — Automated weather reporting system consisting of various sensors, a processor, a computer-generated voice subsystem, and a transmitter to broadcast weather data. Generally AWOS are maintained by the local airport authority, do not report all of the same elements as ASOS, and may not have the same level of backup sensors or maintenance response levels.

Aviation Weather Center (AWC) — National center that issues warnings, forecasts, and analyses of hazardous weather for aviation. More information.

Aviation Weather Testbed (AWT) — A research entity of the Aviation Weather Center comprised of a collaborative team of developers and researchers dedicated to leading the forefront of innovative meteorological techniques for aviation forecasting. Their efforts ensure the protection of pilots and passengers, support of operations, and constant improvement of the forecasting process.

B

Beam blockage — Radar phenomenon that occurs when the radar beam is blocked by terrain and is particularly predominant in mountainous terrain.

BECMG — Gradual change in TAF forecast conditions over longer period, usually two hours.

C

Categorical Amendment Criteria (CAC) — Customer-based impact thresholds for TAF amendments in the US. More information.

Ceiling — The height above the earth’s surface of the lowest layer of clouds, which is reported as broken or overcast, or the vertical visibility into an obscuration.

Center Weather Advisory (CWA) — Aviation weather advisory for conditions meeting or approaching national in-flight advisory (AIRMET, SIGMET or SIGMET for convection) criteria. More information.

Center Weather Service Unit (CWSU) — Weather offices that provide weather forecasts and advisories to the 21 Air Route Traffic Control Centers (ARTCCs). More information.

Clear air turbulence (CAT) — Turbulence occurring in cloudless regions that causes buffeting of aircraft.

Coordinated Universal Time (UTC) — Standardized universal time that aligns approximately with mean solar time at the prime meridian (zero degrees longitude). Also referred to as Zulu (Z) time and the successor to Greenwich Mean Time (GMT).

County Warning Area (CWA) — Area of responsibility for local NWS Weather Forecast Offices.

Current Icing Potential (CIP) — Numerical model guidance of current areas conducive to airframe icing.

Convective Outlook — Categorical depiction of non-severe thunderstorm areas and severe thunderstorm threats across the contiguous United States issued by the NWS Storm Prediction Center.

Crosswind — Wind that has a component directed perpendicularly to the heading of an aircraft or runway.

Cumulonimbus (Cb) — very large, tall, billowing cumulus clouds, sometimes referred to as thunderheads. They often produce lightning, thunder, rain, sometimes waterspouts, and on rare occasions severe weather such as hail, high winds, or tornadoes.

D

Dewpoint — A measure of atmospheric moisture. It is the temperature to which air must be cooled in order to reach saturation (assuming air pressure and moisture content are constant). A higher dew point indicates more moisture present in the air.

Density altitude — Pressure altitude corrected for variations from standard temperature. When conditions are standard, pressure altitude and density altitude are the same. If the temperature is above standard, the density altitude is higher than pressure altitude. If the temperature is below standard, the density altitude is lower than pressure altitude.

E

Echo top — Radar indication of the highest altitude of precipitation. Height above ground of the center of the radar beam using the tilt, or scan, that contains the highest elevation where reflectivities greater than 18 dBZ can be detected.

Eddy Dissipation Rate (EDR) — Objective measure of turbulence intensity without regard to aircraft characteristics, expressed as the cube root of the dissipation rate of turbulent kinetic energy.

Embedded thunderstorms — Thunderstorms or cumulonimbus (CB) clouds that are embedded in cloud layers or concealed by haze.

Extended Convective Forecast Product (ECFP) — Graphical probabilistic forecast of of likely thunderstorms covering the 48 contiguous state for day two through four.

Extended TCF (eTCF) — High confidence graphical forecast of convection covering the 48 contiguous states issued every two hours from 10 to 30 hours into the future. Expands upon the forecaster-in-the-loop TCF product.

F

FA — See Area Forecast

FB winds / FD winds — Legacy wind and temperature forecast product issued four times a day.

Forecast Icing Potential (FIP) — Numerical model guidance forecast of atmospheric conditions conducive to airframe icing.

Front — Boundary between two different air masses.

G

G-AIRMET (Graphical AIRMETs) — Graphical advisory of weather that may be hazardous to aircraft, but are less severe than SIGMETs. More information.

Geostationary Lightning Mapper (GLM) — Satellite based optical detector used to identify lightning flashes.

Global Ensemble Forecast System (GEFS) — Ensemble global weather numerical model system. Guidance used for probabilistic aviation weather forecasts in the Winter Weather Dashboard.

Graphical Forecast for Aviation (GFA) — Products intended to provide the necessary aviation weather information to give users a complete picture of the weather that may impact flight in the United States (including Alaska & Hawaii), the Gulf and Caribbean, and portions of the Atlantic and Pacific Oceans. Website.

GFA-LA — GFA low altitude mode provides weather information relative to ground level (AGL) at more frequent intervals, intended for the Helicopter Air Ambulance community and other low altitude flight.

Graphical Turbulence Guidance (GTG) — Numerical model driven multi-diagnostic turbulence guidance.

H

High Resolution Rapid Refresh (HRRR) — Hourly updated high-resolution numerical model producing forecasts for the contiguous United States.
…(内容过长已截断)

------
