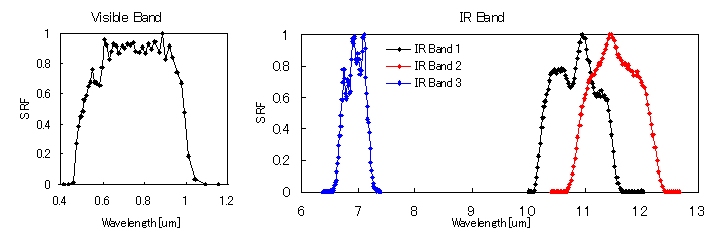

GMS-5 Spectral Response Function

13 June 1995 - 21 May 2003

Visible Band	IR Band 1	IR Band 2	IR Band 3
WL	SRF	WL	SRF	WL	SRF	WL	SRF
0.319	0.000	9.993	0.000	10.401	0.000	6.379	0.000
0.337	0.000	10.015	0.000	10.424	0.000	6.389	0.000
0.355	0.000	10.036	0.000	10.447	0.001	6.400	0.000
0.374	0.000	10.057	0.000	10.470	0.001	6.411	0.000
0.394	0.000	10.079	0.000	10.493	0.000	6.422	0.000
0.415	0.000	10.100	0.007	10.517	0.000	6.433	0.000
0.437	0.000	10.122	0.044	10.540	0.001	6.444	0.000
0.459	0.017	10.144	0.095	10.564	0.001	6.455	0.000
0.477	0.271	10.166	0.153	10.588	0.001	6.466	0.000
0.487	0.385	10.188	0.228	10.611	0.001	6.477	0.001
0.496	0.448	10.210	0.306	10.635	0.001	6.488	0.001
0.506	0.481	10.232	0.407	10.659	0.002	6.499	0.004
0.511	0.558	10.254	0.470	10.684	0.011	6.511	0.005
0.521	0.587	10.276	0.541	10.708	0.025	6.522	0.006
0.531	0.649	10.299	0.576	10.732	0.046	6.533	0.007
0.542	0.679	10.321	0.620	10.757	0.072	6.545	0.008
0.552	0.761	10.344	0.650	10.781	0.112	6.556	0.010
0.563	0.675	10.367	0.703	10.806	0.161	6.567	0.020
0.574	0.672	10.389	0.745	10.831	0.215	6.579	0.038
0.585	0.657	10.412	0.756	10.856	0.278	6.590	0.050
0.596	0.778	10.435	0.766	10.881	0.352	6.602	0.058
0.607	0.960	10.459	0.776	10.906	0.423	6.613	0.077
0.619	0.924	10.482	0.765	10.931	0.492	6.625	0.129
0.631	0.824	10.505	0.753	10.956	0.546	6.637	0.180
0.643	0.881	10.529	0.778	10.982	0.592	6.648	0.223
0.655	0.932	10.552	0.774	11.008	0.620	6.660	0.296
0.668	0.914	10.576	0.768	11.033	0.656	6.672	0.355
0.680	0.870	10.600	0.784	11.059	0.695	6.684	0.417
0.693	0.918	10.623	0.772	11.085	0.711	6.696	0.486
0.706	0.902	10.647	0.739	11.111	0.734	6.707	0.585
0.720	0.933	10.671	0.717	11.138	0.742	6.719	0.697
0.733	0.923	10.696	0.688	11.164	0.745	6.731	0.779
0.747	0.934	10.720	0.670	11.190	0.769	6.743	0.781
0.762	0.884	10.744	0.666	11.217	0.780	6.755	0.718
0.776	0.872	10.769	0.672	11.244	0.806	6.768	0.622
0.791	0.906	10.794	0.692	11.271	0.818	6.780	0.593
0.806	0.870	10.818	0.716	11.298	0.843	6.792	0.606
0.821	0.932	10.843	0.784	11.325	0.879	6.804	0.713
0.837	0.892	10.868	0.843	11.352	0.906	6.817	0.700
0.853	0.946	10.893	0.894	11.379	0.934	6.829	0.681
0.869	0.871	10.918	0.945	11.407	0.972	6.841	0.622
0.886	1.000	10.944	1.000	11.434	1.000	6.854	0.640
0.903	0.827	10.969	0.982	11.462	0.997	6.866	0.736
0.920	0.919	10.995	0.970	11.490	0.979	6.879	0.839
0.938	0.838	11.020	0.908	11.518	0.963	6.891	0.956
0.956	0.744	11.046	0.841	11.546	0.917	6.904	0.971
0.975	0.672	11.072	0.826	11.575	0.875	6.916	0.942
0.994	0.473	11.098	0.760	11.603	0.853	6.929	0.972
1.013	0.190	11.124	0.689	11.632	0.832	6.942	0.985
1.043	0.038	11.151	0.666	11.661	0.812	6.955	0.842
1.096	0.000	11.177	0.625	11.689	0.809	6.968	0.817
1.152	0.000	11.204	0.605	11.718	0.811	6.980	0.845
1.211	0.000	11.230	0.624	11.748	0.788	6.993	0.876
	11.257	0.603	11.777	0.804	7.006	0.842
11.284	0.641	11.806	0.774	7.019	0.776
11.311	0.601	11.836	0.762	7.032	0.747
11.338	0.612	11.866	0.738	7.046	0.771
11.366	0.589	11.896	0.739	7.059	0.893
11.393	0.581	11.926	0.762	7.072	0.983
11.421	0.515	11.956	0.723	7.085	0.980
11.448	0.448	11.986	0.698	7.099	1.000
11.476	0.360	12.017	0.680	7.112	0.912
11.504	0.257	12.048	0.667	7.125	0.722
11.532	0.161	12.078	0.617	7.139	0.626
11.561	0.097	12.109	0.559	7.152	0.542
11.589	0.051	12.141	0.495	7.166	0.465
11.617	0.019	12.172	0.432	7.180	0.443
11.646	0.004	12.203	0.361	7.193	0.377
11.675	0.000	12.235	0.283	7.207	0.276
11.704	0.000	12.267	0.202	7.221	0.185
11.733	0.000	12.299	0.127	7.235	0.135
11.762	0.000	12.331	0.075	7.249	0.092
11.792	0.000	12.363	0.034	7.263	0.054
11.821	0.000	12.396	0.009	7.277	0.032
11.851	0.000	12.428	0.001	7.291	0.022
11.881	0.000	12.461	0.001	7.305	0.017
11.911	0.000	12.494	0.001	7.319	0.011
11.941	0.000	12.527	0.000	7.333	0.008
11.971	0.000	12.561	0.001	7.347	0.005
12.002	0.000	12.594	0.001	7.362	0.004
12.032	0.000	12.628	0.001	7.376	0.003
	12.661	0.000	7.390	0.000

WL : Wavelength (um)

SRF : Spectral Response Function










------
